How Badminton Shuttlecocks Are Made: A Four-Stage Overview

Close-up of a badminton shuttlecock in a precision feather-insertion machine

Quick answer

Badminton shuttlecock manufacturing can be summarized in four core stages: feather selection and preparation, cork-base preparation, 16-feather assembly with thread and adhesive, and inspection plus flight/speed testing. Exact equipment, sequence, and inspection coverage vary by factory and product specification.

Stage 1: Feather Sourcing, Cleaning, and Matching

Manufacturers select feathers by species, grade, length, quill condition, and curvature. (To simulate how different feather shapes, grades, and cork bases affect performance, test our Interactive Shuttlecock Spec Comparison Tool). Many keep feathers from the same wing side together to improve matching, but sourcing and treatment practices vary. Cleaning, drying, and other preparation steps are selected for the product specification and local compliance requirements.

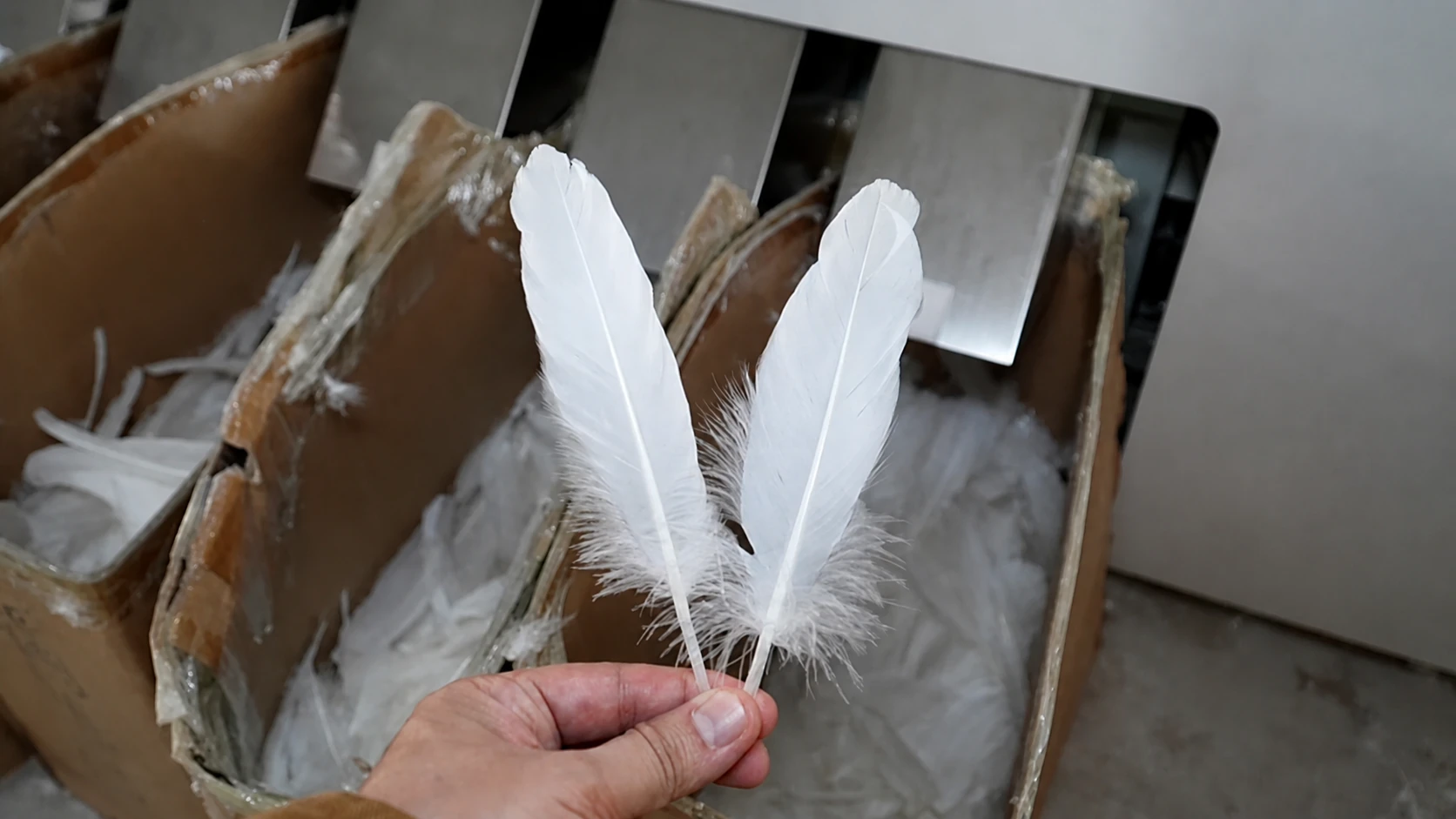

Factory worker holding two selected badminton feathers for inspection — Stage 1 — Selecting and inspecting suitable feathers

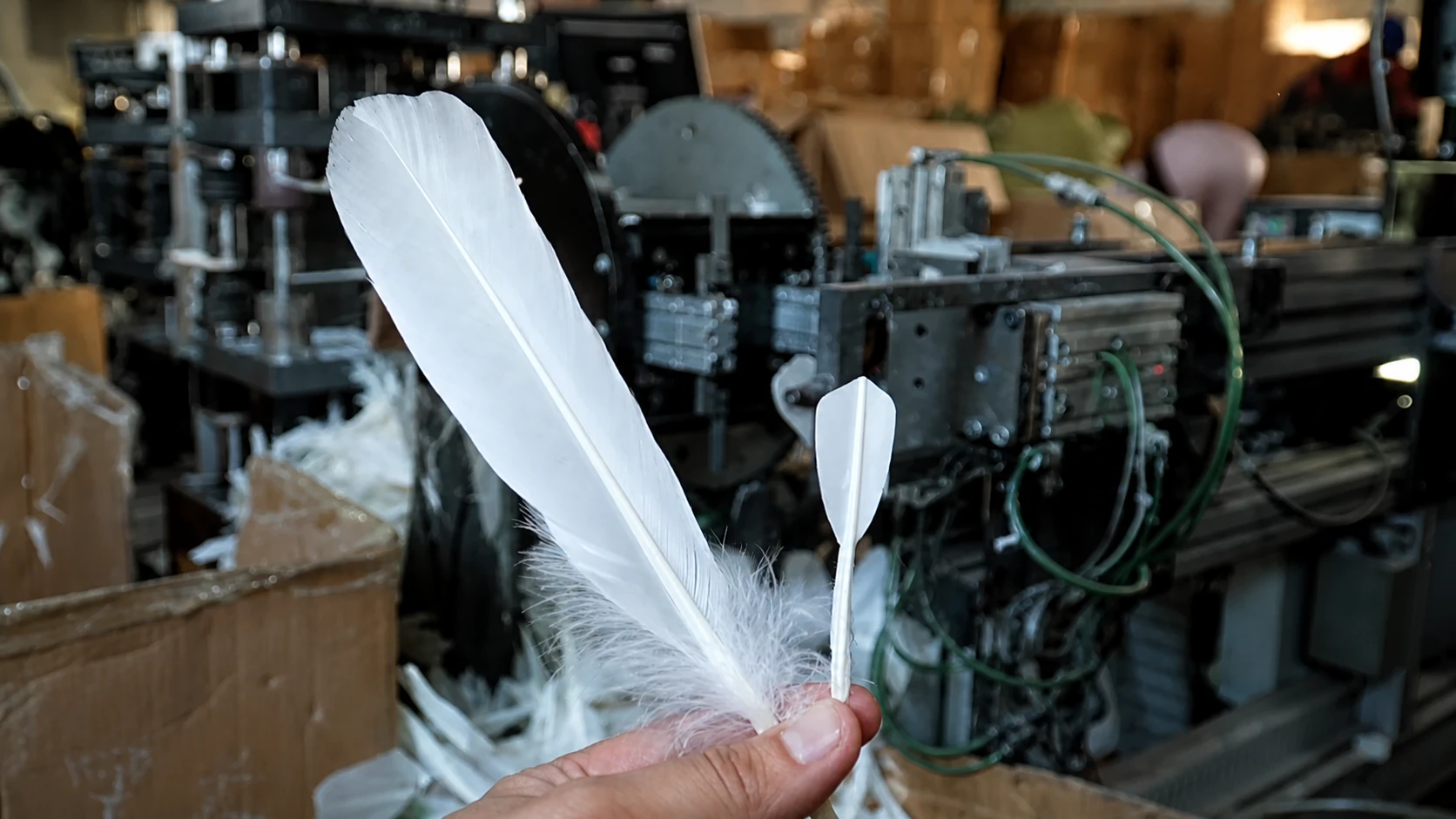

Matched badminton feathers held in front of a shuttlecock production machine — Stage 1 — Comparing feather size, shape, and curvature

Stage 2: Cork-Base Preparation

The base may use solid natural cork or a layered/composite cork construction, depending on the model. It is shaped, finished, and prepared to accept 16 feather shafts. Factories check base dimensions, roundness, hole placement, and bonding against the approved product specification.

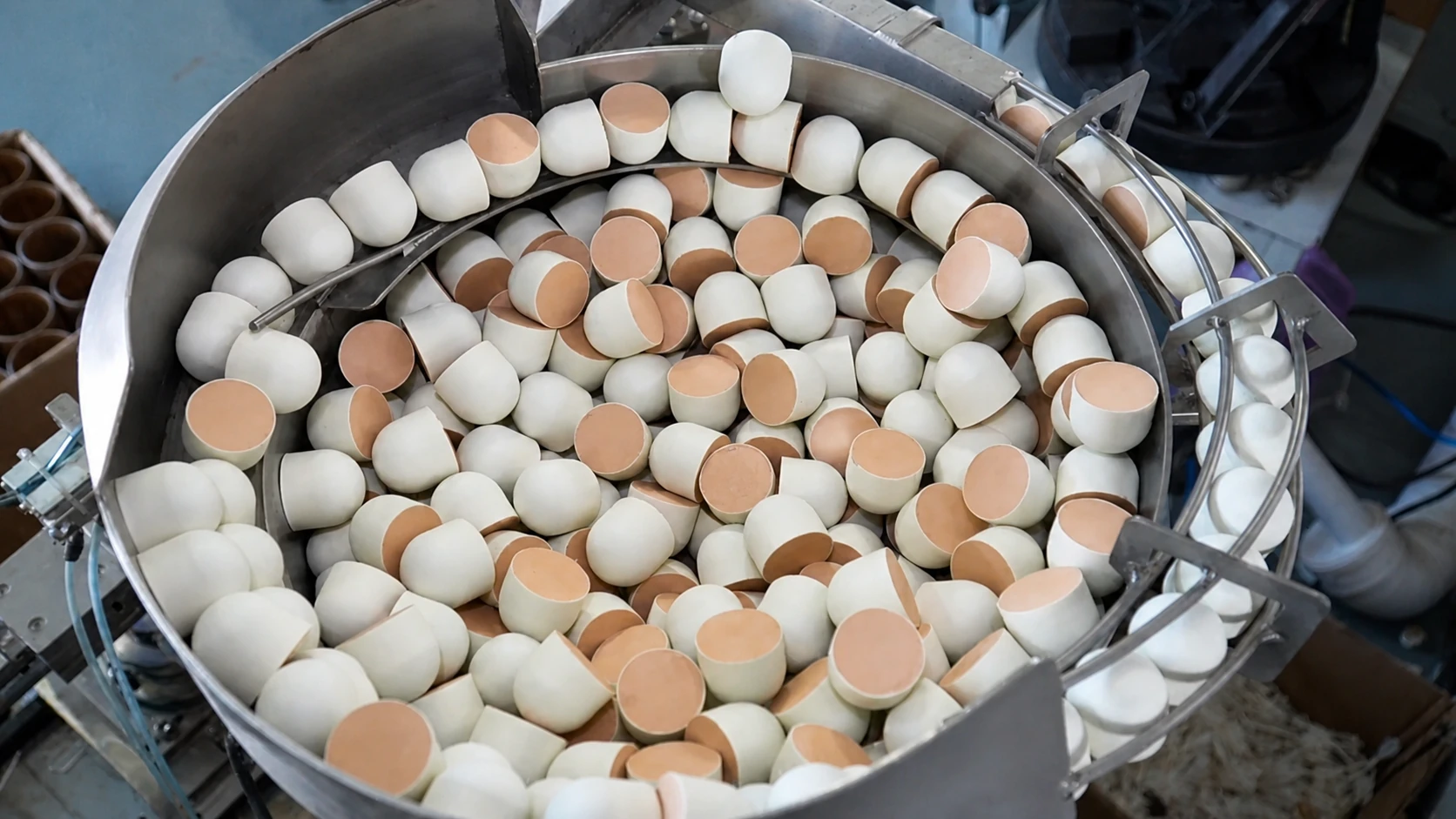

Natural cork bases moving through a factory feeding bowl — Stage 2 — Feeding and preparing cork bases

Precision feather-insertion machine used after cork-base preparation — Stage 2 — Precision fixture used after cork-base preparation

Stage 3: 16-Feather Automated Insertion & Thread Binding

Feather insertion: Sixteen matched feathers are positioned in the base with consistent spacing and angle. The work may be assisted by jigs or machinery, depending on the factory.
Thread binding: Thread is wound or stitched around the feather ring to hold quill spacing and the skirt shape.
Adhesive and finishing: Adhesive is applied and cured according to the product’s construction. The finished skirt is checked for symmetry and loose feathers.

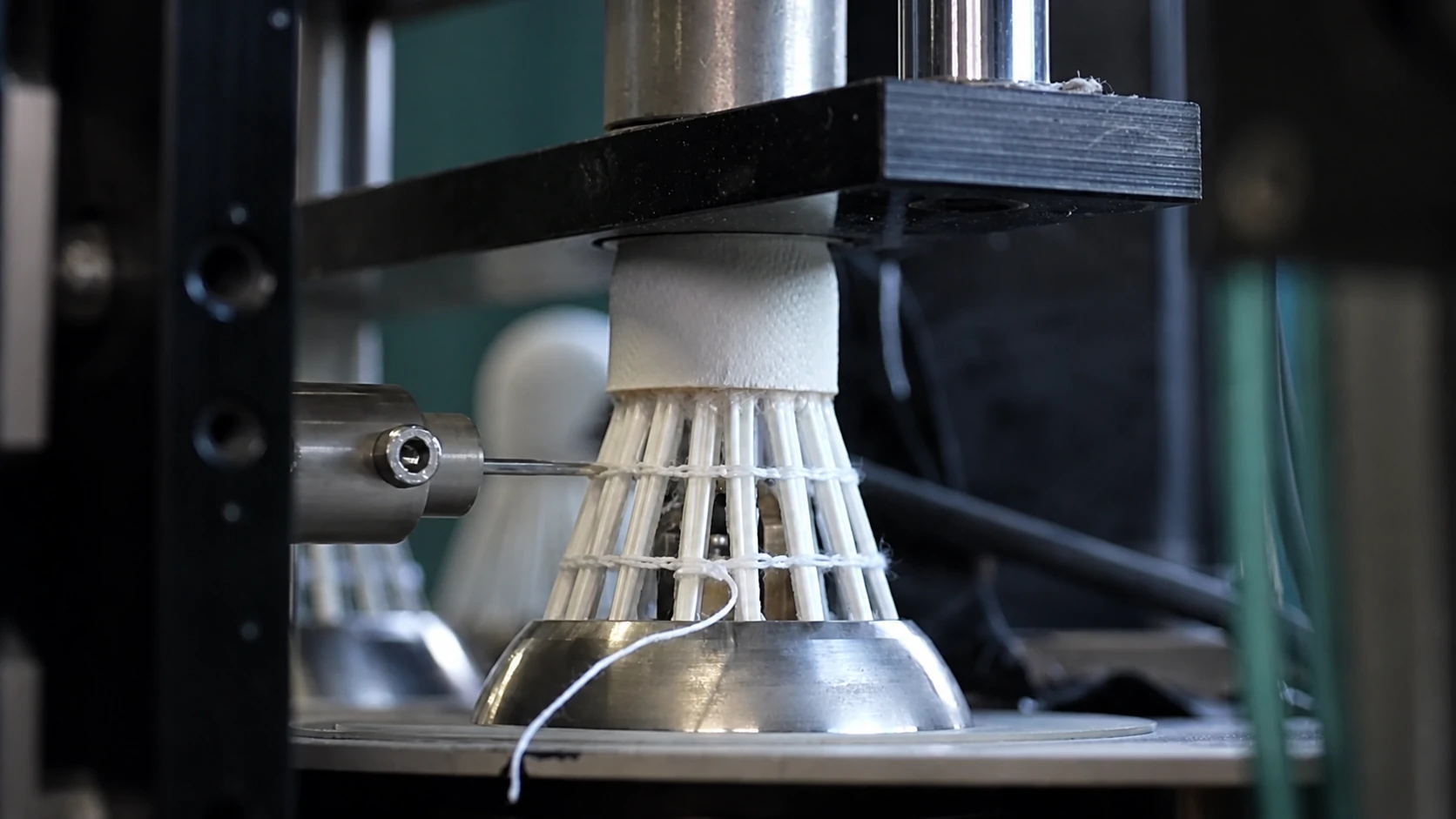

Shuttlecock held in a precision assembly press during thread binding — Stage 3 — Securing the shuttlecock during assembly and binding

Stage 4: Inspection, Speed, and Flight Testing

Finished batches are inspected for appearance, weight, base condition, feather alignment, and packaging. Representative samples are tested on the intended court using the BWF baseline procedure; additional machine or tunnel testing may be used when it is part of the supplier’s documented QC system. The result should be recorded with the batch, temperature, humidity, and selected speed.

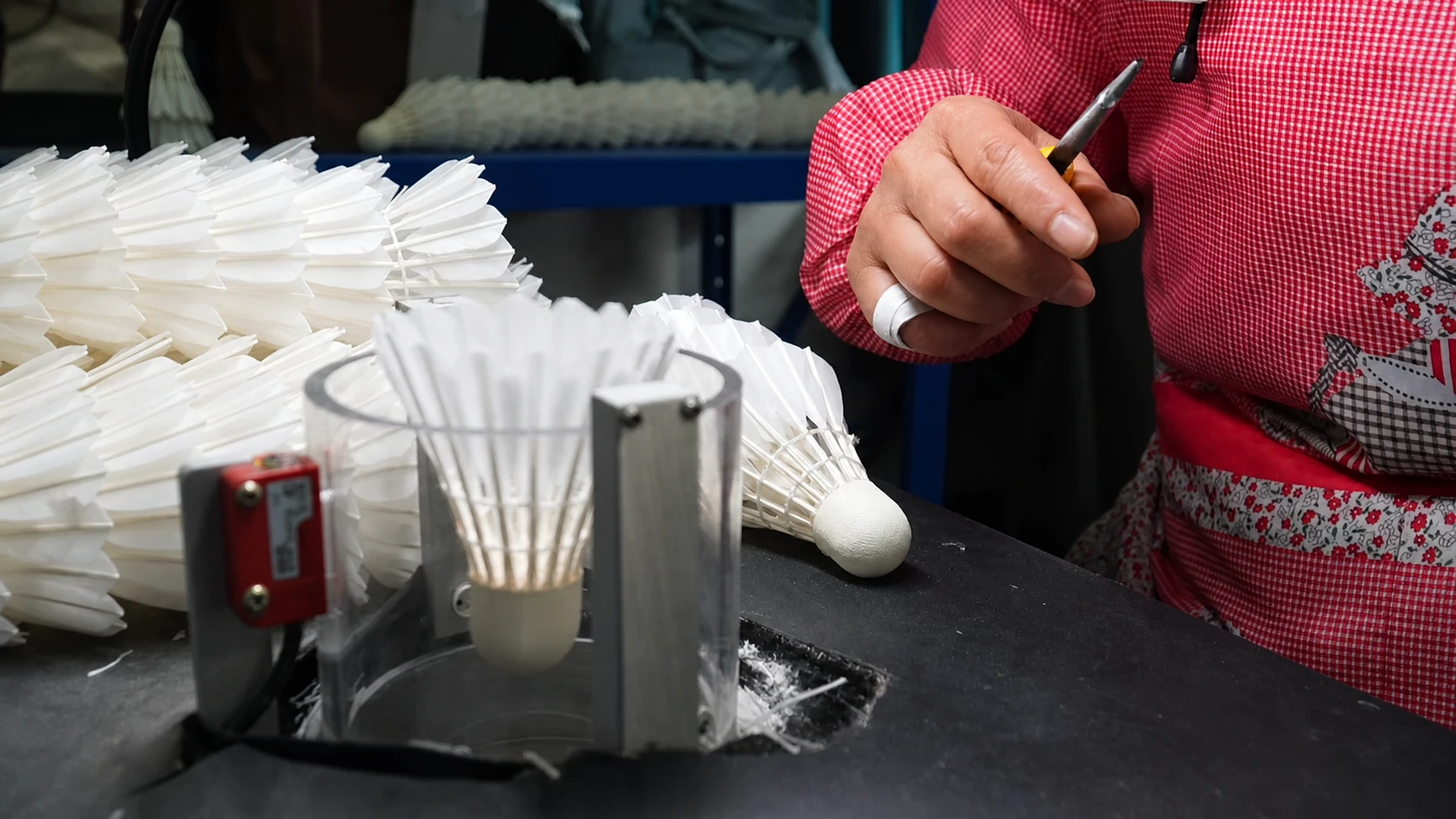

Worker checking shuttlecocks on a badminton flight-testing machine — Stage 4 — Flight and speed testing before release

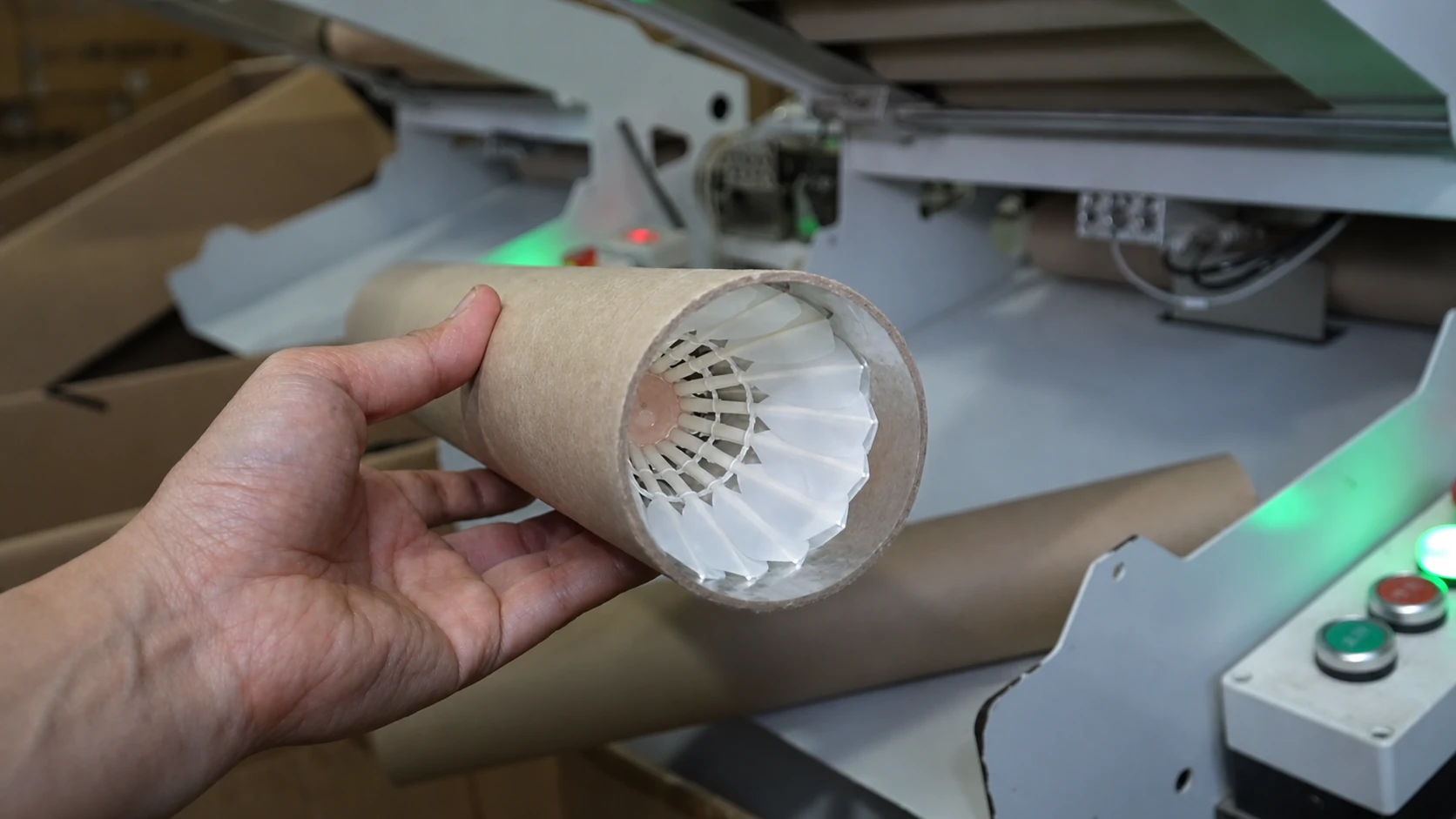

Finished badminton shuttlecock placed inside a cardboard tube at the packaging line — Stage 4 — Packaging and final presentation checks

Frequently Asked Questions (Manufacturing FAQs)

What causes a shuttlecock to wobble in flight?

Wobble can come from mismatched feather curvature, uneven spacing or insertion, a damaged quill, an inconsistent base, or an unsuitable speed for the court. Consistent matching and assembly reduce the risk, but no factory process can honestly promise zero wobble in every shuttle without a defined inspection method.

Why is 3-piece natural cork used in tournament shuttles?

3-piece natural cork is one construction option that can provide a particular balance of feel, rebound, and durability. Whether it is preferable depends on the product design, materials, adhesive, and target player; it is not a universal requirement for tournament play.
